- Sporty design & low weight
- Modular frame concept
- Growth capacity provides long term use for growing kids
- Many accessories and options

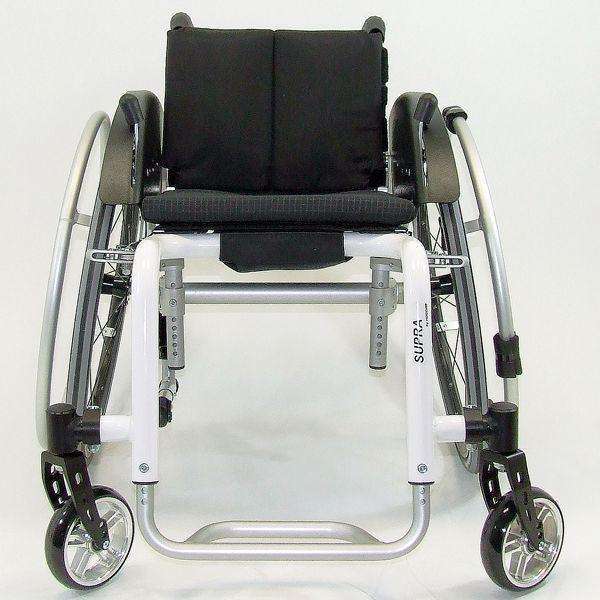

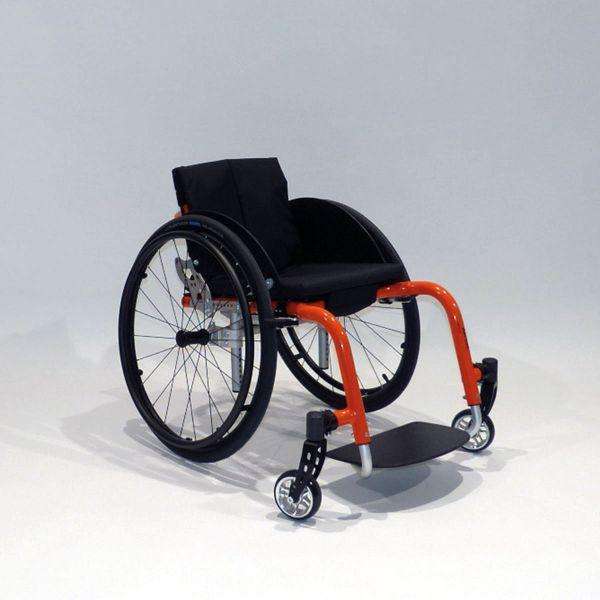

SUPRA – the light active one with a modular frame system
A sporty, rigid and active wheelchair for kids?
To date, rigid frame active wheelchairs have been reserved for adults or fully grown adolescents.
Once delivered, they have limited adaptability with little or no growth capacity.
To meet the needs of kids, adjustability is the top priority – especially concerning height adjustment.
How can we enable kids to use a sporty and active wheelchair?
SUPRA offers a new, modular concept in frame design, creating an active chair that is a suitable and economic choice.
SUPRA – sporty design – economic supply for kids
- The open and rigid frame explicitly represents sportiness.
- The adjustment of axis and the backrest on the seat tubes are independent from one another, enabling ample seat depth adjustment (17 cm) and the ideal centre of gravity adjustment (active grade).
- The innovative abduction of the front frame allows for a compact construction of the wheelchair, imparting extra rigidity (for optimal ride characteristics) and stability.
- With a weight of only 8,4 kg for a kids active wheelchair (seat width 26 cm, 100 mm skate wheel), SUPRA is a vanguard of active, lightweight wheelchairs.
- It is possible to convert the seat widths from 24 cm to 40 cm, in 2 cm increments, by simply replacing a few transverse members.
- The modular concept provides a sound, economical choice for kids.
|
Size 1 |
Size 2 |
Size 3 |
Seat widths |
|||
Standard |
24 - 30 cm |
28 - 34 cm |
32 - 40 cm |
Total |
24 - 40 cm |
24 - 40 cm |
24 - 40 cm |
Seat widths SUPRA |
|||
Standard |
- |
30 - 34 cm |
32 - 40 cm |
Total | - | 30 - 40 cm |
30 - 40 cm |
Seat depth |
17 - 34 cm |
22 - 39 cm |
28 - 45 cm |
Seat height |
34 - 43 cm |
37 - 46 cm |
41 - 49 cm |
Seat angle |
0° - 15° |
0° - 15° |
0° - 15° |
Backrest height |
|||
Short |
20 - 25 cm |
20 - 25 cm |
20 - 25 cm |
Middle |
25 - 35 cm |
25 - 35 cm |
25 - 35 cm |
Long | 30 - 40 cm | 30 - 40 cm | 30 - 40 cm |
Backrest angle | 75° - 105° | 75° - 105° | 75° - 105° |
Lower leg length |
27 - 41 cm |
30 - 44 cm |
34 - 48 cm |
Rear wheels |
20“, 22", 24" |
20", 22", 24" |
20", 22", 24" |
Front wheels |
4“, 5", 5,5" |
4", 5", 5,5" |
4", 5", 5,5" |
Load capacity |
75 kg |
75 kg |
75 kg |
Weight |
8,4 kg |
8,9 kg |
9,4 kg |
