Description

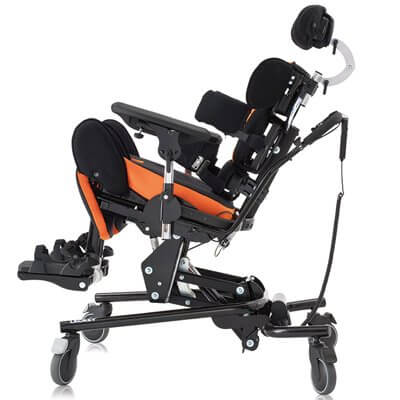

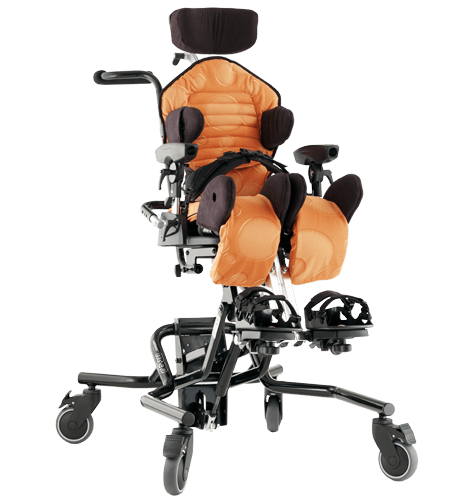

EnaTech Hub offers the innovative Mygo Seating System, enabling therapists to optimise postural care for children with moderate to complex special needs. Capable of catering to a range of sizes, the seating system has now been introduced in 3 different sizes for added convenience.
-
The leg guides can easily be adjusted, accommodating leg length differences that may occur due to fixed pelvic rotation
-
The ramped one-piece base cushion provides support to the ischial tuberosities
-
The flexible sacral support aids in correcting or accommodating pelvic tilt
-
The pelvic cradle with independent hip guides allows for proximal positioning
The Mygo Seating System offers individual trunk and head supports that cater to the unique needs of users. Apart from ensuring comfort and skin protection, seating systems provide the necessary postural support for children to carry out functional activities at home and school. Mygo interfaces seamlessly with a range of positional accessories as well as bases (wheelchair, high-low, stroller).
Invest in Mygo's seating solutions for optimal posture control and comfort, enabling easy completion of daily activities.
MyGo Seating System Features and Benefits

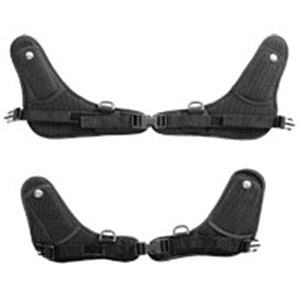

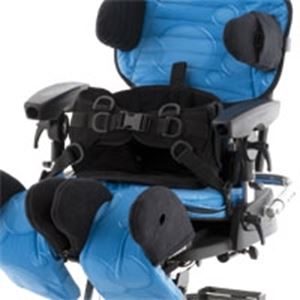

The placement of both the pelvic harness and Pelvic Cradle attachments is strategically designed for optimal support, maintaining proper anatomical positioning with the help of four secure attachment points.
For correcting or accommodating pelvic tilt, flexible sacral support is the way to go.
Hip guides offer lateral support and midline positioning, and can be adjusted to suit asymmetries.
The back angle adjusts to the anatomically correct position, ensuring that lateral supports remain optimally placed even when the seat back is reclined.
The flexible scoliosis can be managed with the use of lateral supports in conjunction with the pelvic harness, facilitating 3-point positioning.
The level of trunk support required determines whether a chest pad or a harness can be fitted to Mygo. This ensures maximal adaptability and customisation to meet the user's specific needs with ease.
The split seat base accommodates windsweeping postures with ease. By offsetting the hip guides, it can also adapt to more extreme positions, achieving an impressive range of up to 13° abduction and 10° adduction.
The leg guides are adjustable to accommodate differences in leg length, including those resulting from a fixed pelvic rotation.
Positioning the foot supports behind the knees can help alleviate strain from tight hamstrings, promoting stability in the pelvic area.
Fabric Options
Colour Options - Each cover pack will include the following cushions: backrest cushion, seat base cushion, sacral cushion, femoral guide covers (Size 1 only). Vynil in black available.
Size Guide
Available in 3 sizes.
|
|
mm |
inches |
mm |
inches |
mm |
inches |
Age (Years) |
Min. |
3 |
8 |
10 |
|||
|
Max. |
10 |
14 |
16 |
|||
User Height |
Min. |
1050 |
41 |
1270 |
50 |
1500 |
59 |
|
Max. |
1500 |
59 |
1680 |
66 |
1750 |
69 |
User Weight |
Min. |
18kg / 40lbs |
18kg / 40lbs |
18kg / 40lbs |
|||
|
Max. |
50kg / 110lbs |
60kg / 132lbs |
70kg / 154lbs |
Product sizing | Size 1 | Size 2 | Size 3 | ||||
Seat Depth | Min. | 270 | 10.6 | 350 | 13.8 | 350 | 13.8 |
Max. | 420 | 16.5 | 470 | 18.5 | 470 | 18.5 | |
Seat Width | Min. | 200 | 8 | 220 | 8.7 | 250 | 9.8 |
Max. | 325 | 13 | 345 | 13.6 | 400 | 15.7 | |
Backrest Height | Min. | 360 | 14.2 | 460 | 18.1 | 460 | 18.1 |
Max. | 470 | 18.5 | 570 | 22.4 | 570 | 22.4 | |
Seat to Sandal | Min. | 215 | 8.5 | 315 | 12.4 | 315 | 12.4 |
|
Max. | 350 | 13.8 | 470 | 18.5 | 470 | 18.5 |
Chest Width | Min. | 170 | 6.7 | 170 | 6.7 | 200 | 7.8 |
Max. | 270 | 10.6 | 270 | 10.6 | 300 | 11.8 | |
Armrest Height | Min. | 160 | 6.3 | 210 | 8.3 | 210 | 8.3 |
Max. | 210 | 8.3 | 260 | 10.2 | 260 | 10.2 | |
Knee Width | Min. | 90 | 3.5 | 120 | 4.7 | 120 | 4.7 |
Max. | 110 | 4.3 | 140 | 5.5 | 140 | 5.5 | |
Backrest Angle | Prone | 10 degrees | 10 degrees | 10 degrees | |||
Recline | 25 degrees | 25 degrees | 25 degrees | ||||
Footplate | Abduction | 8 degrees | 8 degrees | 8 degrees | |||
Adduction | 12 degrees | 20 degrees | 20 degrees | ||||
Plantar/dorsiflexion | 10 degrees | 10 degrees | 10 degrees | ||||
Tray Size | 550x480 | 21.6x18.9 | 550x480 | 21.6x18.9 | 550x480 | 21.6x18.9 |

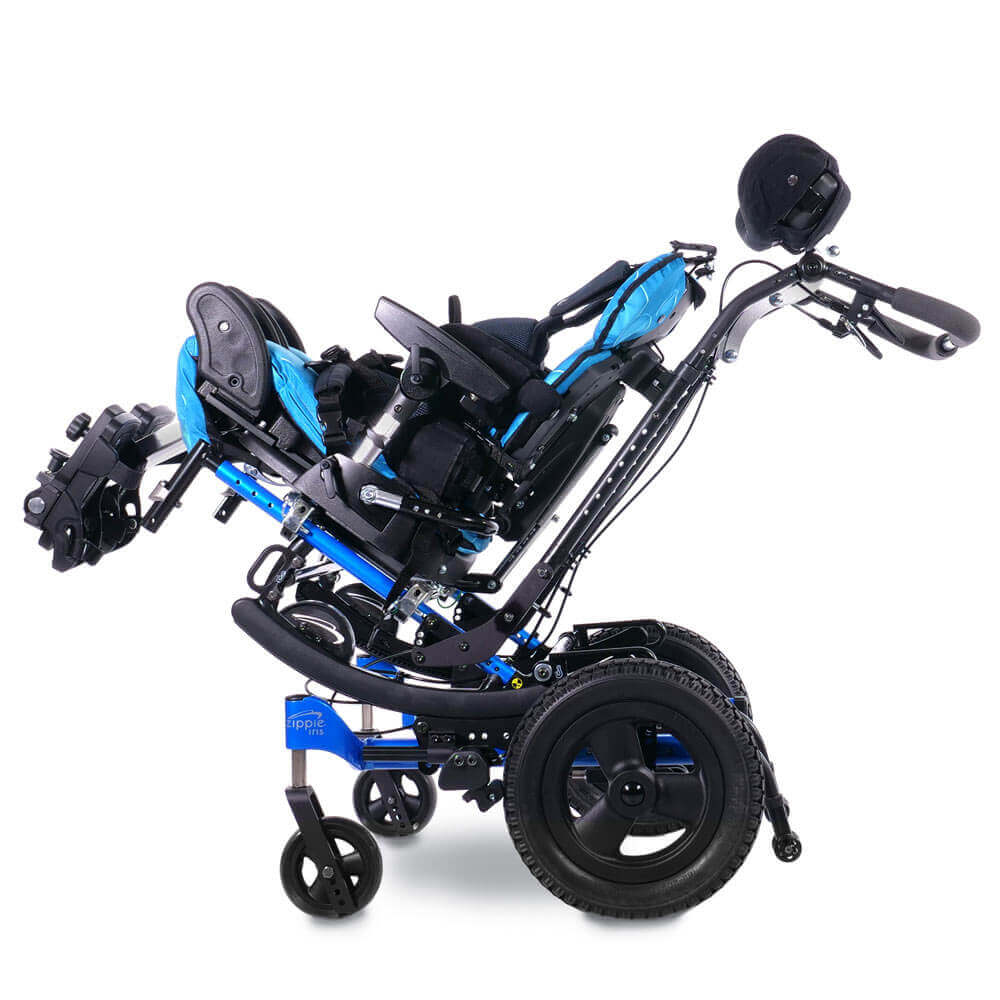

Base Options (+ many Sunrise Bases, Price on Request)
Base Options | mm | inches | |
Indoor Chassis- Gas Spring Foot Pedal | Min. | 340 | 13.4 |
Max. | 655 | 25.8 | |
Indoor Chassis- Hydraulic Foot Pedal | Min. | 325 | 12.8 |
Max. | 615 | 24.2 | |
Indoor Chassis- Powered Height Adj. | Min. | 370 | 14.6 |
Max. | 675 | 26.6 | |
Indoor-outdoor Chassis- Gas Sprint Foot Pedal | Min. | 390 | 15.4 |
Max. | 690 | 27.2 | |
Indoor-outdoor Chassis- Hydraulic Foot Pedal | Min. | 380 | 15 |
Max. | 670 | 26.4 | |
Indoor-outdoor Chassis- Powered Height Adj. | Min. | 420 | 16.5 |
Max. | 710 | 28 | |
Tilt in Space | Prone | 10 degrees | |
Supine | 25 degrees | ||
Base Weight | 12kg/ 26.5 lbs |
Sunrise Range, Indoor (gas / powered / hydraulic) Indoor/Outdoor (gas / hydraulic / powered)
