Sporty active - comfortably positioned
- Tilt in space from -5 ° to + 45 °
- Modern and sporty design.
- Modular and variable construction system
SWINGBO-VTi – an impressive design with a modern, sporty and compact appearance. Several adjustment possibilities and a wide range of accessories for more freedom and an individual patient-centred care. Mobility base, seat frame and panel, backrest panels and footrest systems can be ordered in any combination separately.
 |
 |
 |
Exclusive and harmonious look. Light and very compact for transport.
- Variable and large growth capacity.
- Extreme compact folding size.
- Absolute lightweight.
 |
 |
|

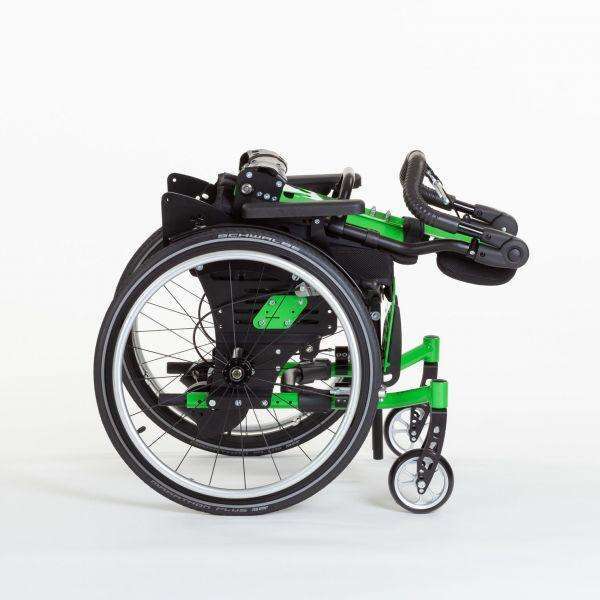

Fold your SWINGBO-VTi with 3 hand grips for transport or a car ride easily.
Raising it for use is similarly easy.
With the weight of just 15 kg (basically configurated / seat width 28) SWINGBO-VTi is able to mess with exclusive “active wheelchairs” without growth capacity.
Tilt in space and backrest recline.
According to the individual need of the child SWINGBO-VTi offers comfortable changeovers between active and passive positions.
Both functions are easy to handle and guarantee various angles for the perfect and individual patient-centred care.

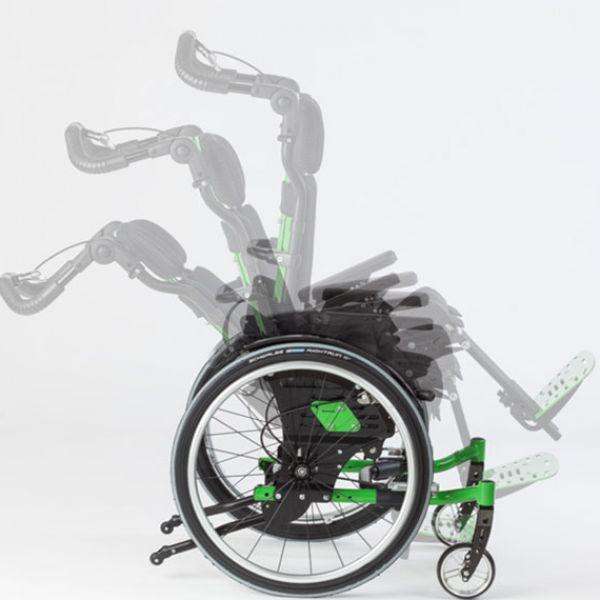

Tilt in space from -5° to +45°.
The seat angles are adjustable from -5° to +45° (in 4° steps).

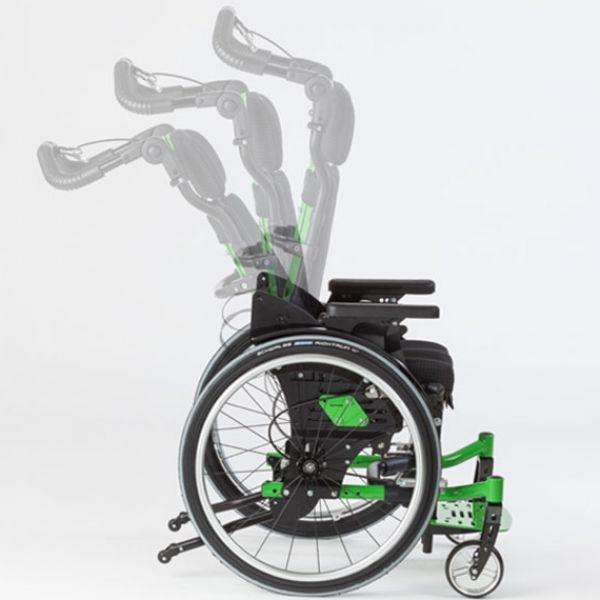

Backrest recline from 80° to 120°.
The backrest angles are adjustable from 80° to 120° (in 10° steps).
The perfect position – in almost every situation.
Various options. Custom-made solution for you.
Create your SWINGBO-VTi especially for your needs. Everything is possible.
SWINGBO-VTi offers a wide range of accessories for your perfect and individual needs.
Innovative and comfortable accessories. From one source.
 |
 |
 |
Large growth capacity.
The seat depth can be adjusted by approximately 8 cm and the backrest height by approximately 9 cm.
Easy adjustment of active degree.
The seat unit of the SWINGBO-VTi is adjustable continuously and allows an easy and stepless adjustment of the active degree.
Grows with your child. Easy active degree adjustment.
 |
 |
|
Independent on rough terrain – Off-road construction.
The outdoor front end. Mounting with minimal manipulation.
The outdoor front end is designed particularly for outdoor use and allows independent moving on unmade roads (dirt or gravel roads).
The perfect push aid for the assistant, to overcome together with patient also daily, urban barriers as bouldering, tracks or the like.
|
Seat width |
24 cm |
26 cm |
28 cm |
30 cm |
32 cm |
34 cm |
36 cm |
|
Width between seat rails |
23,5 cm | 25,5 cm | 27,5 cm | 29,5 cm | 31,5 cm | 33,5 cm | 35,5 cm |
|
Seat depth |
24 - 30 cm |
24 - 32 cm |
26 - 34 cm |
28 - 36 cm |
30 - 38 cm |
32 - 40 cm |
34 - 42 cm |
|
Seat height |
37 - 47 cm for all seat widths |
||||||
|
Seat angle |
-5° to +45° for all seat widths |
||||||
|
Backrest height |
|
||||||
|
Backrest angle and height (adjustable) |
33 - 42 cm |
35 - 44 cm |
37 - 46 cm |
39 - 48 cm |
42 - 51 cm |
43 - 54 cm |
45 - 55 cm |
|
Push bar/ handles hinged |
36 - 44 cm |
37 - 45 cm |
38 - 48 cm |
39 - 49 cm |
40 - 50 cm |
42 - 54 cm |
43 - 55 cm |
|
Push bar hinged and angle adaptable |
36 - 44 cm |
37 - 45 cm |
38 - 48 cm |
39 - 49 cm |
40 - 50 cm |
42 - 54 cm |
43 - 55 cm |
|
Backrest angle |
|
||||||
|
Backrest angle and height (adjustable) |
75° to 115° or from 80° to 120° (in 10° steps) |
||||||
|
Push bar/ handles hinged |
85° to 105° (in 5° steps) |
||||||
|
Push bar hinged and angle adaptable |
80° to 120° (in 10° steps) |
||||||
|
Lower leg length |
16 - 37 cm |
||||||
|
Footrest angle |
-10° to +10° |
||||||
|
Rear wheel diameter |
20", 22", 24" |
||||||
|
Front wheel diameter |
4", 5", 5,5" |
||||||
|
Camber |
3°, 6°, 9° |
||||||
|
Load capacity |
60 kg |
||||||
